What is a Distributor Rotor?

A distributor rotor is the component in spark ignition systems that routes spark from an ignition coil to the proper contact inside of a distributor cap. This is facilitated by the rotation of a distributor shaft, which typically moves in sync with a camshaft. Rotors can be attached to distributor shafts in a handful of different ways that include both press-on spring clip fittings and screws. Although they share similar names, distributor rotors should not be confused with brake rotors.

Distributor Rotor Construction

Although the rotor design can vary somewhat from one application to another, every rotor has three basic design components:

  • a solid body (typically injection-molded plastic)
  • a metal contact
  • some means of attaching to the distributor shaft
distributor rotor

Distributor rotors all have a metal contact on top and some means of connecting to the distributor shaft.

The main body of most distributor rotors is made out of injection-molded plastics that are chosen for their non-conductive and head-resistant properties. This main body has a metal component set into it that serves to provide electrical contact between the central (coil) distributor connector and each outer (spark plug) connector. In some cases, the metal connector is spring-tensioned to provide constant contact to the central connector, and in other cases the central connector itself is a spring-loaded carbon brush.

In most cases, distributor rotors are designed to slip over the outer diameter of a distributor shaft. The shaft is typically keyed in such a way that the rotor can only be installed in one way, which is vital to the proper operation of the ignition system.

Some rotors have metal inserts in their bases, which provides a better connection between the rotor and the distributor shaft, and others simply mate the plastic base to the shaft. The method of securing a rotor also differs from one application to another. Some rotors snap in place with the aid of a spring-tensioned fastener, and others are held in place by a screw or bolt.

How does a Distributor Rotor Work?

Distributor rotors work by providing a movable connection between an ignition coil and a set of spark plugs. When the engine is operating normally, the distributor shaft rotates in time with the camshaft. In turn, the rotor itself turns in time with the distributor shaft. Since the rotor sits inside a distributor cap, it has a constant connection to the ignition coil and an intermittent connection to each spark plug (via the distributor cap terminals and spark plug wires.)

distributor and rotor

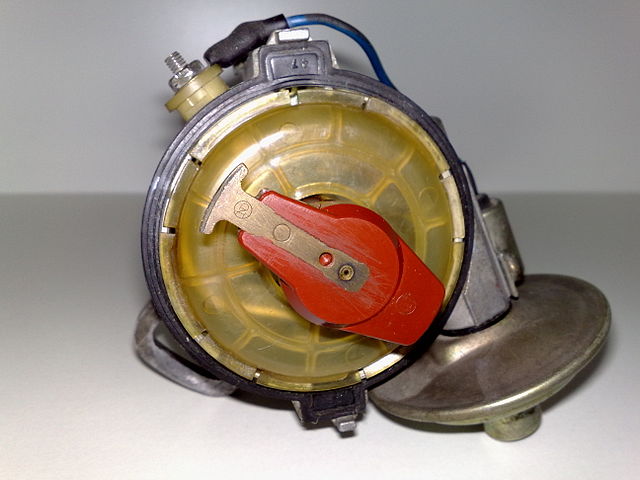

A distributor rotor sits on top of a distributor shaft and spins inside a distributor cap.

As the rotor turns, it periodically makes and breaks contact with the outer terminals inside the distributor cap. If the ignition system is properly timed, a high voltage pulse is provided to the rotor each time it passes one of the outer terminals. An electrical connection is then made between the spark plug, spark plug wire, distributor cap terminal, rotor, and the ignition coil, and the spark plug is able to ignite the air/fuel mixture within its combustion chamber.

Distributor Rotor Failure

When a distributor rotor fails, the engine will typically run poorly or fail to run at all. Most failures are due to wear or buildup on the electrical contacts, both of which prevent adequate (or any) spark at the spark plugs. Excess buildup can be sometimes be cleaned away to extend the life of a rotor, but replacement is typically indicated. Since rotors are wear items, they have to be replaced from time to time due to normal wear and tear.

In some cases, a rotor can fail in other ways. If a rotor spins on the distributor shaft, the ignition timing will no longer be correct, in the same way that rotating the main body of a distributor will change the ignition timing. That can cause anything from a no-start condition, to a poorly running engine, or even severe backfiring, depending on exactly how off the rotor’s orientation is. This may be caused by a bad insert, stressed housing, or a fastener that has backed off.

Replacing a Distributor Rotor

Replacing a rotor isn’t a complicated operation, but they are difficult to reach in some applications. The process of replacing a rotor consists of removing the distributor cap (which itself may be difficult to reach), undoing the fastener (if any is present), and removing the rotor. Installation is simply a reversal of this process, although it is important to make sure that the rotor is installed in the same orientation that it was removed, and that the fastener (if any) is tightened down properly.
